The equation for a cone oriented along the $z$-axis with an opening angle $2\gamma$ is given by

$$ x^2 + y^2 = z^2 \tan^2\!\left(\gamma\right) , $$

where $r = |z| \tan(\gamma)$ is the radius of a circular slice of the cone at an axial position $z$, as shown in Figure 1.

Projection of a cone given by the cone equation

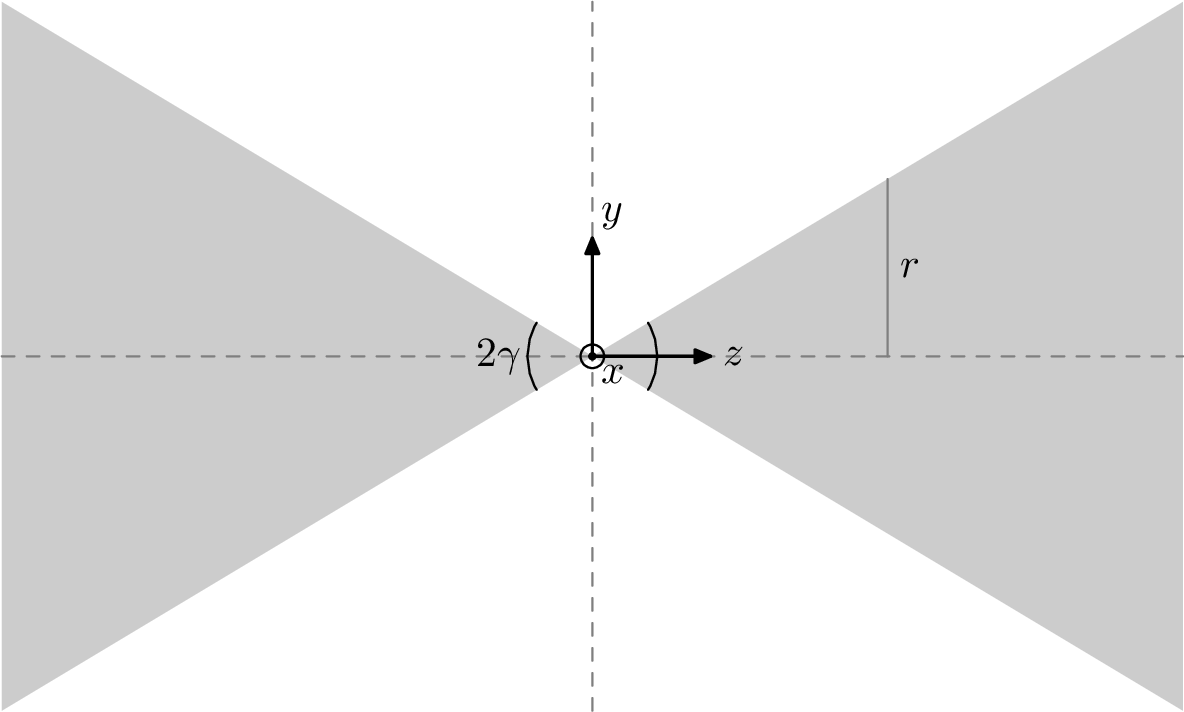

Figure 1. Projection of a cone given by Equation 1.

To see how off-plane-diffracted orders are confined to the surface of a cone, the trick is to replace $x$, $y$ and $z$ with analogous $\mathbf{k}$-space components for a diffracted wave vector, and to consider why it is justified to do so. This boils down to thinking of a reflection grating as something that functions like a grating in one direction but a mirror in the other. The punchline is that the components of the $n^{\text{th}}$-order vector, $\mathbf{k}_n'$, satisfy

$$ k_{x,n}'^{\,2} + k_{y,n}'^{\,2} = k_z^2 \tan^2\!\left(\gamma\right) , $$

which is made possible by the $z$-component, $k_z$, being preserved from the incident wave vector, $\mathbf{k}$; this is a result of $z$ being the groove direction. The components $k_{x,n}'$ and $k_{y,n}'$ then describe the location of the $n^{\text{th}}$ order on the arc of diffraction. The reasons for all of this are outlined as follows.

Wave Vectors and the Grating Equation

Let's consider a generic wave vector that represents the incident ray on a diffraction grating, illustrated in Figure 2:

$$ \mathbf{k} = k_x \hat{x} + k_y \hat{y} + k_z \hat{z} , $$

which can be written in terms of the angles $\alpha$ and $\gamma$ as

$$ \mathbf{k} = -k \left[ \sin(\alpha)\sin(\gamma)\,\hat{x} + \cos(\alpha)\sin(\gamma)\,\hat{y} - \cos(\gamma)\,\hat{z} \right] , $$

where the length of the vector, $|\mathbf{k}| = k \equiv 2\pi/\lambda$, is the wavenumber of radiation and $\lambda$ is the wavelength.

Basic geometry for a grating of uniform period d

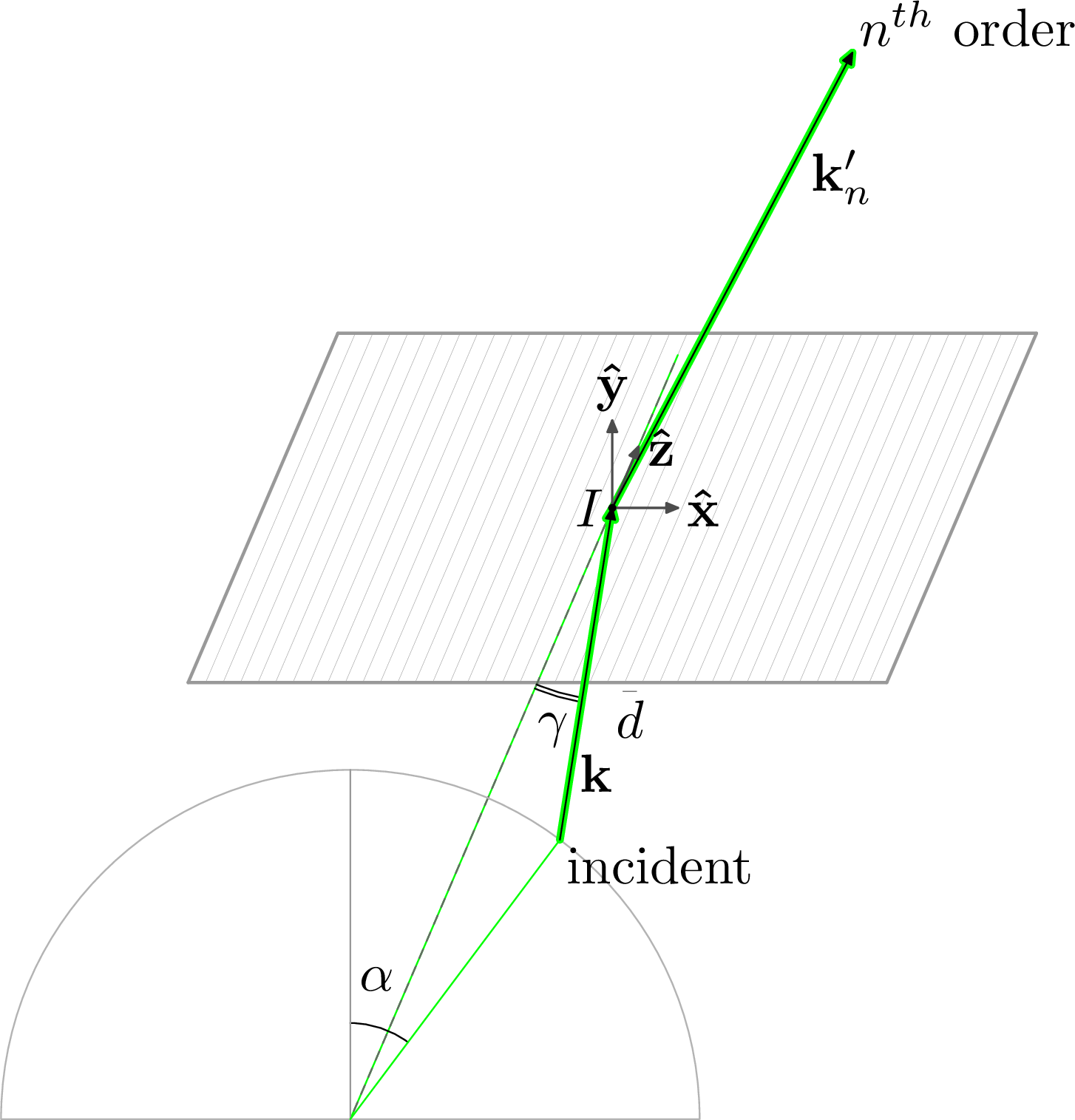

Figure 2. Basic geometry for a grating of uniform period $d$, where $\hat{x}$ is the dispersion direction and $z$ is the groove direction: the principal incident wave vector $\mathbf{k}$ strikes the grating at a point $I$ and diffracts into the $n^{\text{th}}$ order, where the wave vector is denoted $\mathbf{k}_n'$.

Here, $\gamma$ can be thought of as the angle between $\mathbf{k}$ and the groove direction, $\hat{z}$, while $\alpha$ can be thought of the angle between $\mathbf{k} - k_z \hat{z}$ (i.e., $\mathbf{k}$ projected into the $\hat{x}$-$\hat{y}$ plane) and the grating normal, $\hat{y}$. Note that nothing has been spoken of a cone yet; rather, the components of $\mathbf{k}$ have simply been defined using an established coordinate system.

Let's also consider another generic wave vector that represents the $n^{\text{th}}$ diffracted order that reflects from the grating (also illustrated in Figure 2):

$$ \mathbf{k}_n' = k_{x,n}' \,\hat{x} + k_{y,n}' \,\hat{y} + k_{z,n}' \,\hat{z} , $$

where the components are, for the moment, undefined but it is assumed that $|\mathbf{k}_n'| = k = 2\pi/\lambda$. To ensure phase continuity between the incident wave and the diffracted orders, boundary conditions involving $k_x$, $k_z$, $k_{x,n}'$ and $k_{z,n}'$ can be applied while $k_{y,n}'$ (for reflected orders) is determined from:

$$ |\mathbf{k}_n'|^2 = k^2 = k_{x,n}'^{\,2} + k_{y,n}'^{\,2} + k_{z,n}'^{\,2} \implies k_{y,n}' = \sqrt{k^2 - k_{x,n}'^{\,2} - k_{z,n}'^{\,2}} , $$

where values of $n$ consistent with $k_{y,n}'$ being real describe propagating orders.

For a mirror with the $y$-axis as its surface normal, the boundary conditions are $k_x = k_x'$ and $k_z = k_z'$, which together state that the components of the incident and reflected rays parallel to the surface are equal; this leads to the law of reflection.

A reflection grating can be thought of as a mirror with the added feature that grooves define spatial periodicity in $\hat{x}$ (i.e., the cross-groove direction in Figure 2). This is described by the grating wave vector:

$$ \mathbf{K} = K\,\hat{x} = \frac{2\pi}{d}\,\hat{x} , $$

with $K = 2\pi/d$ as the grating wavenumber. The surface-relief grating boundary can be defined by

$$ g(x) = \sum_{n=-\infty}^{\infty} g_n \, e^{inKx} \equiv \sum_{n=-\infty}^{\infty} g_n(x), $$

where the complex Fourier coefficients are given by

$$ g_n = \frac{1}{d} \int_0^d g(x) \, e^{-inKx} \dd{x} \quad \text{for } n = 0, \pm 1, \pm 2, \pm 3 \dotsc $$

Owing to the periodicity of the groove border with $g(x) = g(x+d)$, spatial harmonics can be picked up along $\hat{x}$ such that the relation $k_x = k_x'$ for a mirror is replaced by $k_{x,n}' = k_x + nK$ in the case of a grating. With the direction of grating periodicity being purely confined to $\hat{x}$ by the grating wave vector, however, $k_z = k_z'$ for the case of a mirror is still valid such that $k_{z,n}' = k_z$. This is because the grating behaves like a mirror along the groove direction; it only behaves like a grating along the dispersion direction.

Conical Diffraction

It has just been argued that the $n^{\text{th}}$ diffracted order has a wave vector of the form

$$ \mathbf{k}_n' = k_{x,n}' \,\hat{x} + k_{y,n}' \,\hat{y} + k_z \,\hat{z} $$

due to $k_z$ being preserved from the incident wave vector, $\mathbf{k}$.

Off-plane conical diffraction geometry

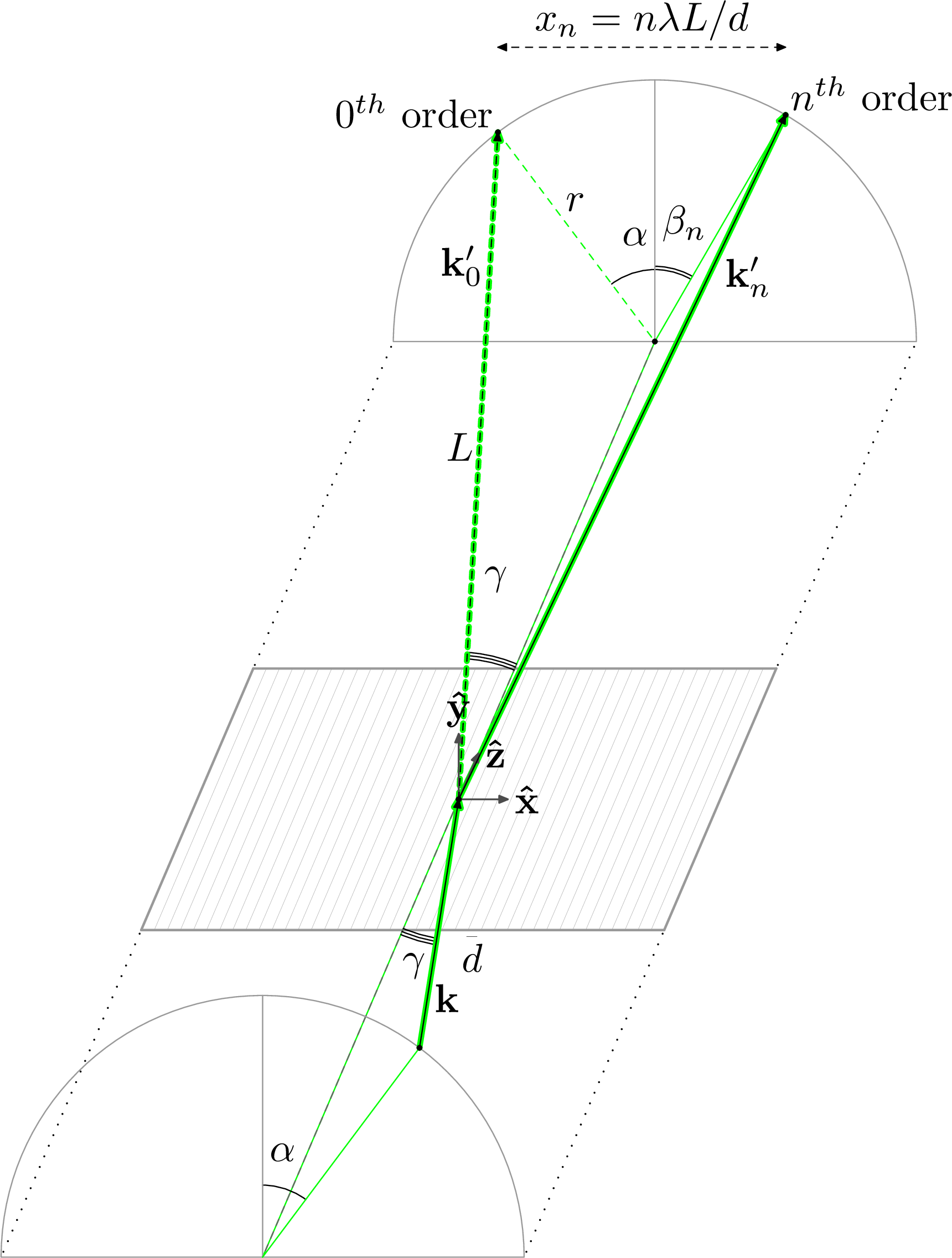

Figure 3. Off-plane, conical diffraction, where the incident wave vector $\mathbf{k}$ is given by Equation 5 and the $n^{\text{th}}$-order diffracted wave vector $\mathbf{k}_n'$ is given by Equation 10.

Knowing that $k_z = k\cos(\gamma)$ from Equation 5, $\mathbf{k}_n'$ can now be written as

$$ \mathbf{k}_n' = k \left[ \sin(\beta_n)\sin(\gamma)\,\hat{x} + \cos(\beta_n)\sin(\gamma)\,\hat{y} + \cos(\gamma)\,\hat{z} \right] , $$

where $\beta_n$ is introduced as the $n^{\text{th}}$-order diffraction angle and the boundary condition $k_{x,n}' = k_x + nK$ now yields

$$ \sin(\alpha) + \sin(\beta_n) = \frac{n\lambda}{d\sin(\gamma)} \quad \text{for } n = 0, \pm 1, \pm 2, \pm 3 \dotsc , $$

which is recognized as the generalized grating equation. To see how the propagating orders define the surface of a cone with an opening angle $2\gamma$ as in Figure 1, the norm squared of $\mathbf{k}_n'$ as in Equation 7 can now be written as

$$ |\mathbf{k}_n'|^2 = k^2 = k_{x,n}'^{\,2} + k_{y,n}'^{\,2} + k_z^2 . $$

This can be rearranged as

$$ k_{x,n}'^{\,2} + k_{y,n}'^{\,2} = k^2 - k_z^2 = k_z^2 \left[ \sec^2(\gamma) - 1 \right] $$

using $k = k_z \sec(\gamma)$ from $k_z = k\cos(\gamma)$. From $\tan^2(\gamma) = \sec^2(\gamma) - 1$, it is seen that

$$ k_{x,n}'^{\,2} + k_{y,n}'^{\,2} = k_z^2 \tan^2(\gamma) , $$

which is equivalent to Equation 1: the equation for a cone. This is why the usual off-plane grating figure, shown in Figure 3 is drawn in the way that it is, where the $0^{\text{th}}$ and $n^{\text{th}}$ orders define the surface of a cone.

Effective Wavelength for Diffraction

With Equation 12 defining a cone in $\mathbf{k}$-space, its circular base has radius $k_r = k_z \tan(\gamma)$ in analogy with $r = |z|\tan(\gamma)$ from Equation 1. The relations $k_r = k_z \tan(\gamma)$ and $k_z = k\cos(\gamma)$ can be combined to show that $k_r' = k\sin(\gamma)$.

By defining $k_r = 2\pi/\bar{\lambda}$ with $\bar{\lambda}$ as an effective wavelength:

$$ k_r = k\sin(\gamma) \implies \bar{\lambda} = \lambda\csc(\gamma) , $$

it is gleaned that conical, off-plane diffraction can be understood as being equivalent to the scenario of classical, in-plane diffraction (where $k_z = 0$; see Figure 4) but with an increased effective wavelength $\bar{\lambda}$.

In-plane classical diffraction with kz=0

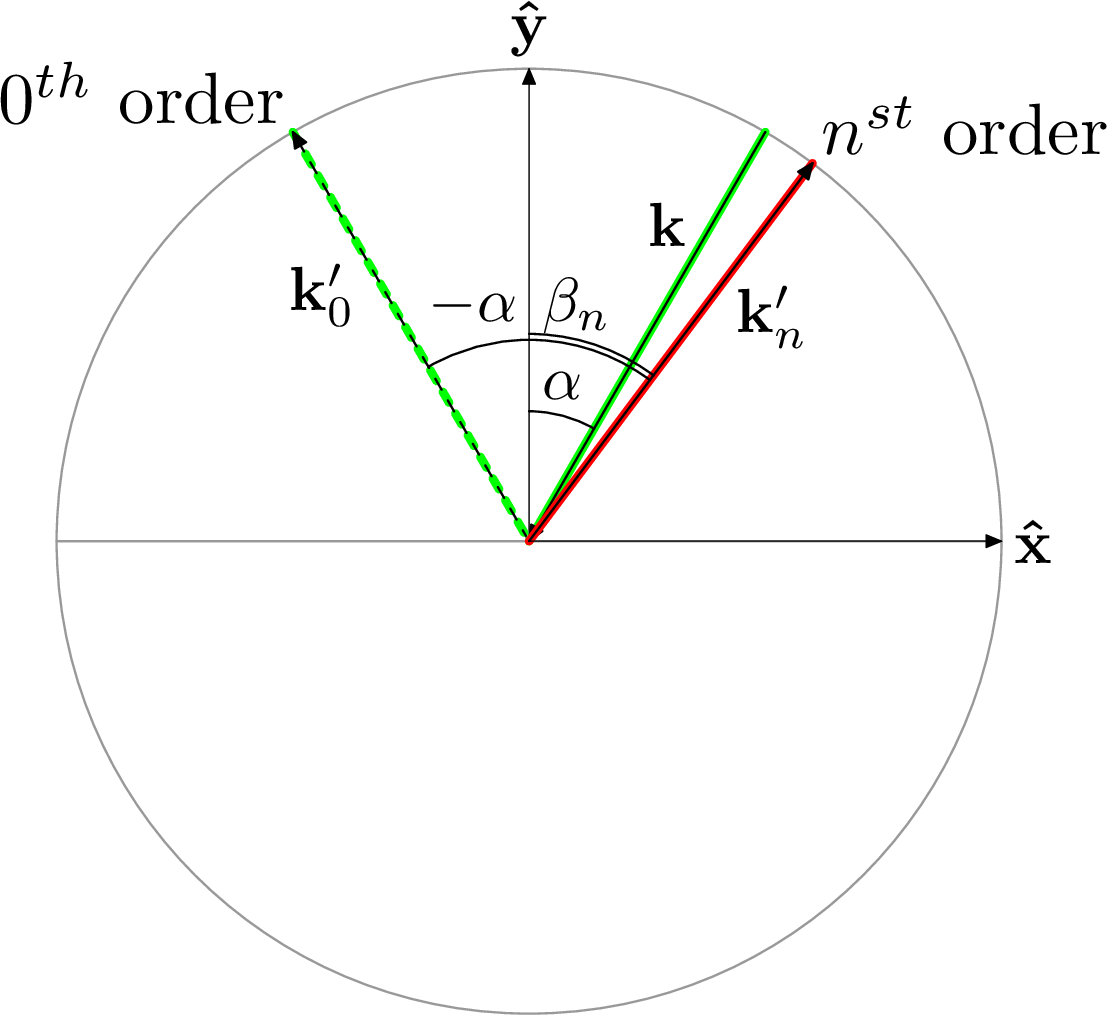

Figure 4. In-plane, classical diffraction with $k_z=0$. By the theorem of invariance, this can be thought of being equivalent to the off-plane scenario in Figure 3 projected onto the $\hat{x}$-$\hat{y}$ plane with an effective wavelength $\bar{\lambda} = \lambda\csc(\gamma)$.

This is known as the theorem of invariance, which can be shown to be true using Green's theorem for a perfectly conducting grating boundary.

Projection of a cone in k-space

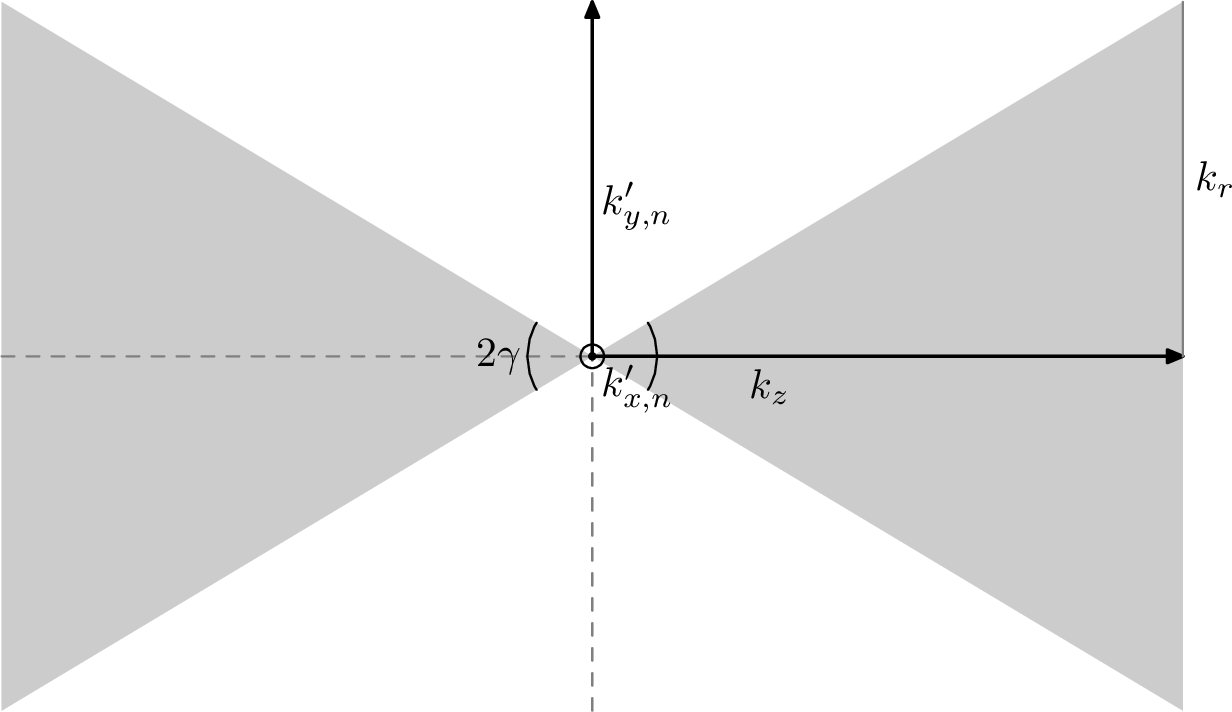

Figure 5. Projection of a cone in $\mathbf{k}_n'$-space given by Equation 12, where $k_r = k_z \tan(\gamma)$ is the radius of the cone base. The origin corresponds to point $I$ in Figure 2.

The grating equation can then be written as

$$ \sin(\alpha) + \sin(\beta_n) = \frac{n\bar{\lambda}}{d} \quad \text{for } n = 0, \pm 1, \pm 2, \pm 3 \dotsc , $$

which elucidates the need for $\bar{\lambda}$ to be comparable to $d$ while the actual wavelength can be much smaller: by $\lambda = \bar{\lambda}\sin(\gamma)$.
